AS IS CM 8.5' x 96 HS Flatbed Truck Bed

• Stock #: 311094
• Location: Sycamore
• Status: Sold
• Condition: AS IS
• Manufacturer: CM
• Model: HS
• Construction Material: Steel
• Length: 8.5'
• Width: 96.00"
• Cab to Axle: 58"
• Frame Rail Width: 42"

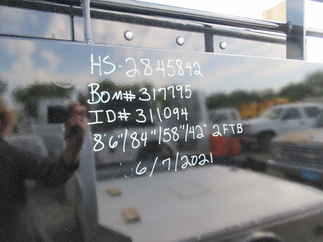

• Manufacturer Part #: HS-02845842
• Headache Rack Height: 45.5
• Weight: 825 LBS
• Warranty: SOLD AS IS. SEE DESCRIPTION & PICS FOR MORE INFORMATION.

Description:

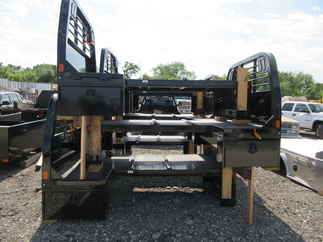

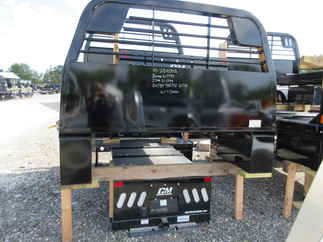

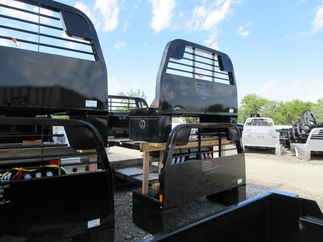

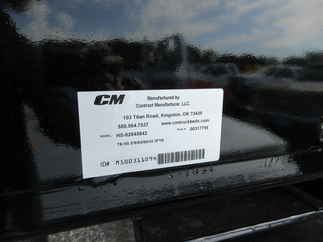

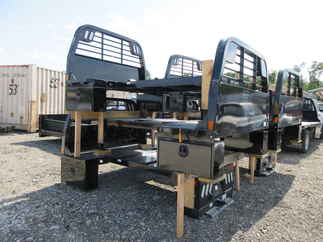

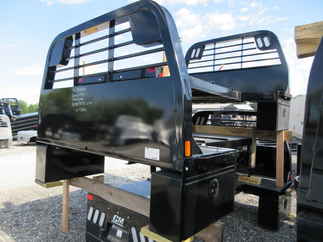

AS IS CM HS Flatbed body only, 8.5' long x 96 inch wide, 58 inch cab to axle, 42 inch frame rail width, 45.5 inch headache rack height (overall from bottom of frame rails to top of HR), Hot Shot, 2FTB, Bed will fit 56-58" CA trucks. Includes 20" poly fenders & mounting brackets. Aux fuel tank not included. Curt #16090 Spyder 30k GN ball Hitch or #16190 5th Wheel 30k Hitch available (hitches sold separately). Aged/Old Stock (may have minor dings & scratches, blemishes, oxidation, fading, rust streaks, etc)., color: Black. Mfg part # HS-02845842. Weighs approx 825 lbs. Serial # M500311094. 0

STANDARD FEATURES FOR CM HS MODEL:

• Lengths Available: 8.5', 9.3', or 11.3'


• Headache Rack: Steel Tube

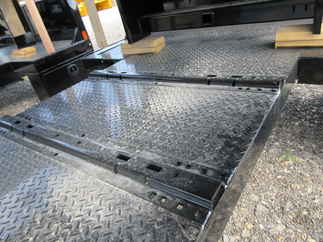

• Deck: 1/8 inch Treadplate


• Frame Rails: 4 inch Structural Channel Steel


• Crossmembers: 3 inch x 3/16 inch Channel


• Rear Skirt: Solid one piece between runners


• Side Rails: 3/8 inch x 2 inch Side rails with Stake pockets on front deck


• Fuel Fill: Angled


• Lighting: LEDs


• Toolbox: Two in front with compression T-handle


• Fenders: Molded plastic with hanger bars


• Bumper pull Hitch: 18,500# 2 inch integrated receiver


• Gooseneck Hitch: OPTIONAL, NOT INCLUDED - 30,000# CURT Rail system compatible with GN ball or 5th Wheel (king pin).

TERMINOLOGY:

• Length: Measurement from the back of the cab to end of frame


• Width:  Measurement from outside of rear tire to outside of rear tire


• CA: Measurement from the back of the cab to center of rear axle


• Rails:  Measurement from outside of frame rail to outside of frame rail (at the rear of the frame)


• HR: Headache rack. Overall height from bottom of bed's frame rails to top of Headache rack.

**PLEASE NOTE: CUSTOMER IS RESPONSIBLE FOR VERIFYING THE TRUCK BED WILL FIT THEIR VEHICLE PRIOR TO PURCHASE.  UNDER NO CIRCUMSTANCES MAY A BED BE RETURNED ONCE INSTALLED OR MODIFIED IN ANY WAY.**

• Mounting brackets, Hardware, Fuel filler necks, Wiring adapter(s), etc are NOT included with the bed and are sold separately.


• The vehicle's exhaust may require modification after install. This is the customer's responsibility and not included with install.


• For gas trucks, a grounding strap attached to the fuel fill box may be required to prevent static electricity & sparking.


• Installation of back-up cameras and/or rear sensors require additional time and labor. (Not included in the standard install rate)

Located in Sycamore, IL 60178.
