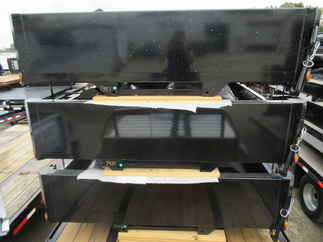

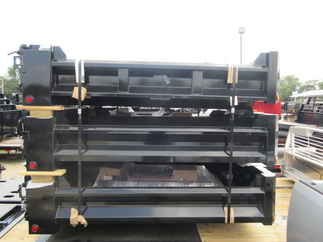

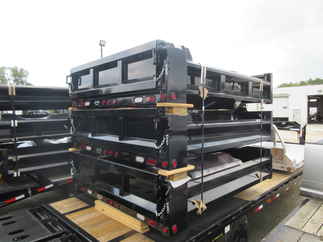

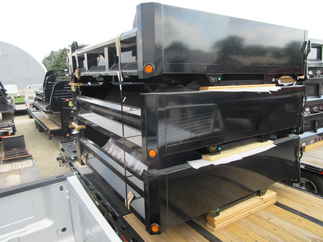

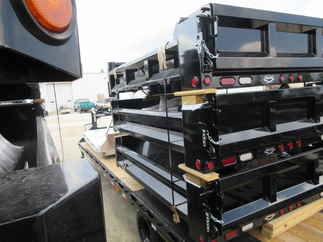

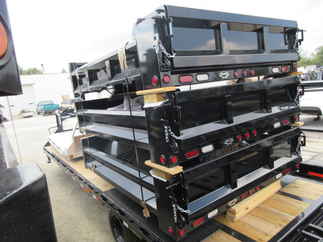

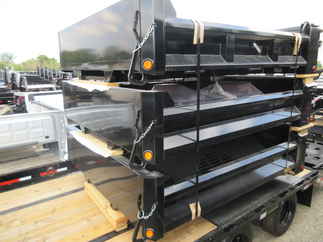

NOS Parkhurst 9.5' x 96 DP-PH Flatbed Truck Bed

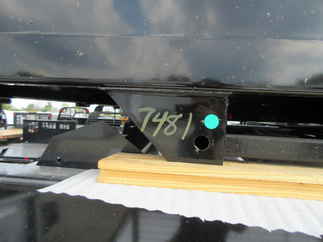

• Stock #: 7481
• Location: Sycamore
• Status: Sold
• Condition: NOS
• Manufacturer: Parkhurst
• Model: DP-PH
• Construction Material: Steel
• Length: 9.5'
• Width: 96.00"
• Cab to Axle: 0"
• Frame Rail Width: 0"
• Manufacturer Part #: PDD096
• Weight: 0 LBS

Description:

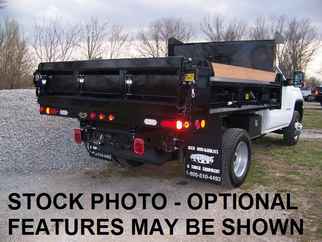

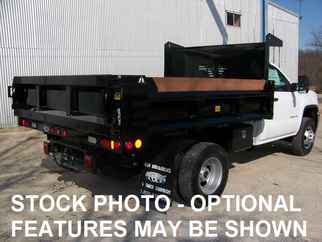

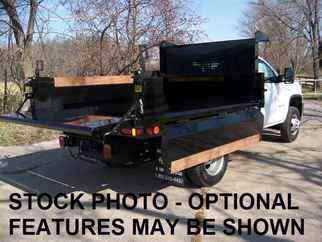

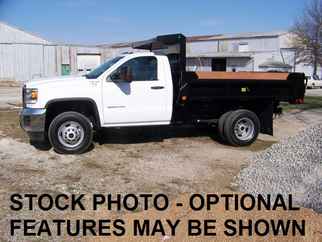

NOS Parkhurst DP-PH Dump body only, 9.5' long x 96 inch wide, N/A inch cab to axle, N/A inch frame rail width, inch headache rack height (overall from bottom of frame rails to top of HR), PARKHURST - Drop side dump, Square cab shield (NOT incl'd: hoist, subframe, pump), Aged/Old Stock (may have scratches, fading, rust streaks, etc), color: Black. Mfg part # PDD096. Weighs approx Unknown lbs. Serial # 7481.

STANDARD FEATURES FOR PARKHURST DUMP BODIES:

• 2-3 yards


• Sides: 12 1/4 inch high plus board pockets.



  • Fold down one piece sides are 12 gauge construction with dirt shedding top rail, center release lever, grease able hinges and vertical stiffeners.


  • Fixed sides are 12 gauge outer panel and 10 gauge inner panel with radius to floor and dirt shedding top rail.

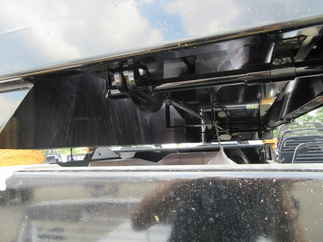

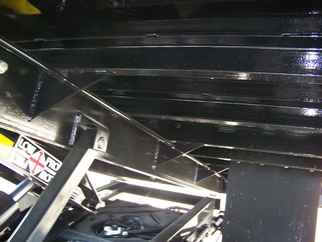

• Frame and floor: Crossmemberless understructure with 8 inch tall longsills formed 3/16 inch steel. 10 gauge formed steel floor.



  • Fixed side bodies have one piece floor.


  • Drop side have dirt shedding 2 piece floor.

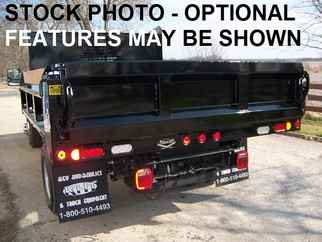

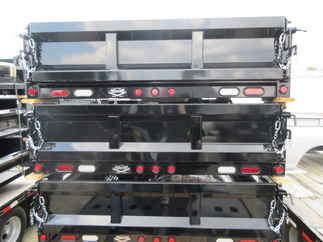

• Rear Apron: 10 gauge formed steel with oval cutouts for stop, turn, tail & back up, 2 per side.


• Front and front corners: 10 gauge formed steel fully welded.


• Rear corners: 10 gauge formed steel fully welded.

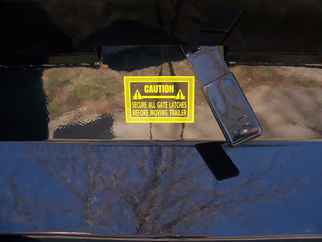

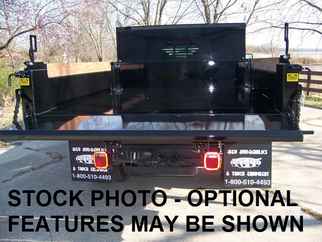

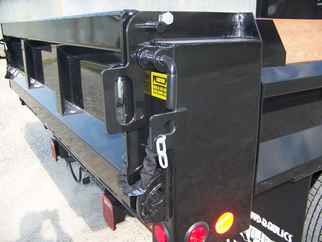

• Tail gate: 12 gauge outer panel with 10 gauge inner panel, fully boxed and welded with dirt shedding top rail, 1 inch hinge pins and quick latch system. Spreader chains and front mounted release lever with adjustable linkage.


• 1/4 Cab shield: Square or Tapered. 12 gauge formed steel with laser cut window and 3/16 inch side stiffeners. Tarp mounting holes included.


• Lights: LED clearance and tail lights, includes 1 each stop, turn, tail and 1 each back up per side with automotive style plug together weather resistant harness. Light kit shipped loose. Lighting and marking per FMVSS 108.


• Finish: Powder coated gloss black.

*PLEASE NOTE:

• *** CUSTOMER IS RESPONSIBLE FOR VERIFYING THE TRUCK BED WILL FIT THEIR VEHICLE PRIOR TO PURCHASE.  UNDER NO CIRCUMSTANCES MAY A BED BE RETURNED ONCE INSTALLED OR MODIFIED IN ANY WAY. ***


• Mounting brackets, Hardware, Fuel filler necks, Wiring adapter(s), etc are NOT included with the bed and are sold separately.


• The vehicle's exhaust may require modification after install. This is the customer's responsibility and not included with install.


• For gas trucks, a grounding strap attached to the fuel fill box may be required to prevent static electricity & sparking.


• Installation of back-up cameras and/or rear sensors require additional time and labor.
