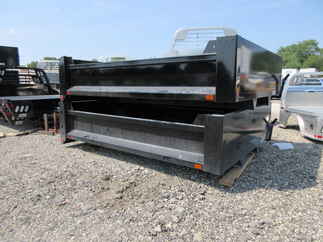

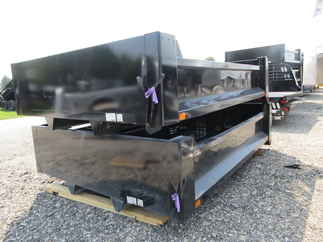

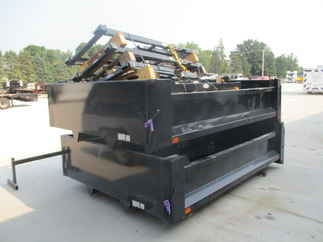

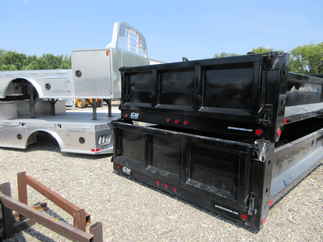

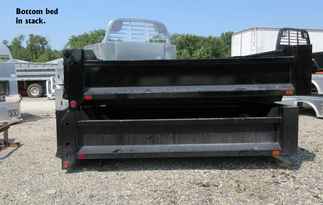

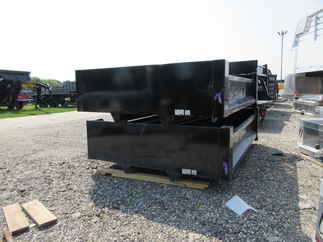

NOS CM 11' x 97 DP Flatbed Truck Bed

• Stock #: 324744
• Location: Sycamore
• Status: Sold
• Condition: NOS
• Manufacturer: CM
• Model: DP
• Construction Material: Steel
• Length: 11'
• Width: 97.00"
• Cab to Axle: 0"
• Frame Rail Width: 34"
• Manufacturer Part #: CMU-11
• Weight: 1529 LBS
• Warranty: New Old Stock - SEE DESCRIPTION & PICS FOR MORE INFORMATION. Mfg Limited Warranty. Exclusions may apply.

Description:

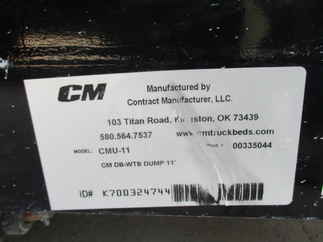

NOS CM DP Dump body only, 11' long x 97 inch wide, N/A inch cab to axle, 34 inch frame rail width, Fixed 18" sides, Cab shield, 20" tailgate, 5-6 yards/8.5 tons, Electric hoist dual acting (loose, has to be attached to dump body), Aged/Old Stock (may have minor dings & scratches, blemishes, oxidation, fading, rust streaks, etc)., color: Black. Mfg part # CMU-11. Weighs approx 1529 lbs. Serial # K700324744.

STANDARD FEATURES FOR CM DUMP BODIES:

• 9' Length = 3-4 Yards / 8 Tons*


• 11' Length = 5-6 Yards / 8.5 Tons*


• 14' Length = 7-8 Yards / 9.5 Tons*



  • *Payload on a dump is determined by the hoist used on the body and the payload of the vehicle that the body is installed on.






• Headache Rack: Formed steel with Cab protector


• Sides: 18 inch Tall




  • Fold down one piece sides or Fixed sides available






• Tailgate: 20 inch Tall


• Deck: 10-Gauge


• Frame Rails: 6 inch Channel Steel


• Crossmembers: 3 inch Structural 3/16 inch Crossmembers


• Marker Lighting: 2 inch Round LED clearance lights


• Venco Hoist with Subframe: Rugged and reliable, Venco underbody hoists are designed for use with bodies ranging in lengths from 8’ to 24’ long, providing dumping capacities of 5 to 34 tons. Venco hoists are encapsulated in a durable, abrasive- and chemical-resistant powder coating to ensure lasting quality and performance.

TERMINOLOGY:

• Length: Measurement from the back of the cab to end of frame


• Width:  Measurement from outside of rear tire to outside of rear tire


• CA: Measurement from the back of the cab to center of rear axle


• Rails:  Measurement from outside of frame rail to outside of frame rail (at the rear of the frame)


• HR: Headache rack. Overall height from bottom of bed's frame rails to top of Headache rack.

**PLEASE NOTE: CUSTOMER IS RESPONSIBLE FOR VERIFYING THE TRUCK BED WILL FIT THEIR VEHICLE PRIOR TO PURCHASE.  UNDER NO CIRCUMSTANCES MAY A BED BE RETURNED ONCE INSTALLED OR MODIFIED IN ANY WAY.**

• Mounting brackets, Hardware, Fuel filler necks, Wiring adapter(s), etc are NOT included with the bed and are sold separately.


• The vehicle's exhaust may require modification after install. This is the customer's responsibility and not included with install.


• For gas trucks, a grounding strap attached to the fuel fill box may be required to prevent static electricity & sparking.


• Installation of back-up cameras and/or rear sensors require additional time and labor. (Not included in the standard install rate)

Located in Sycamore, IL 60178.
